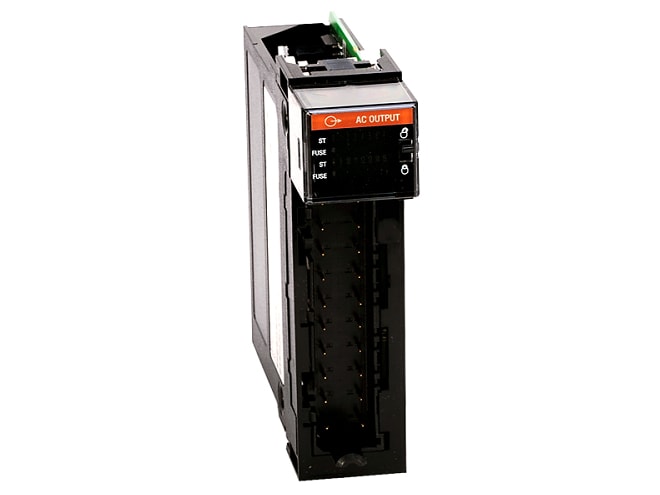

Remanufactured Allen-Bradley 1756-OA8 ControlLogix Digital AC Output Module

8 outputs, 4 points per group.

Remanufactured

$343.48
Availability
  • 1 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-OA8RMN
Manufactured
Product Specs

Features

  • 2A pilot duty
  • 120/240VAC (50/60Hz) voltage category
  • Operating voltage range:
    • 74 to 265VAC
    • 47 to 63Hz
  • Output delay time:
    • OFF to ON:
      • 9.3ms @ 60Hz
      • 11ms @ 50Hz
    • ON to OFF:
      • 9.3ms @ 60Hz
      • 11ms @ 50Hz
  • Current draw:
    • 200mA @ 5.1V
    • 2mA @ 24V
  • 1.07W total backplane power
  • 5.1W @ 140°F max. power dissipation
  • 17.39 BTU/hr thermal dissipation
  • 3mA per point max. off-state leakage current
  • Max. on-state voltage drop:
    • 1.5V peak @ 2A
    • 6V peak @ <50mA
  • 2A @ 140°F max. current per point, linear derating
  • Max. current per module:
    • 5A @ 86°F, linear derating
    • 4A @ 140°F, linear derating

The Allen-Bradley 1756-OA8 ControlLogix Digital AC Output Module includes States in Fault mode per point and States in Program mode per point that can hold the most recent state, for both on-state and off-state. While only AC voltage should be used, channels are grouped to allow each channel to be operated independently by the module at different AC voltage levels. An Allen-Bradley Removable Terminal Block (RTB) is required for the module.
