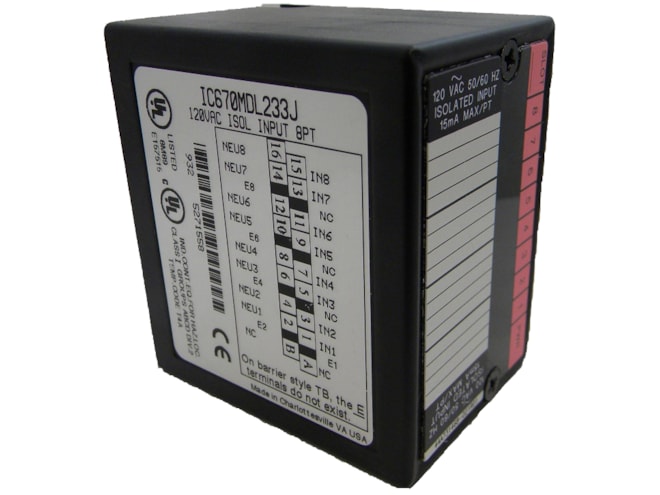

Name: Repair GE-Emerson IC670MDL233 Field Control Discrete Input Module
Price: 900.0 USD
Availability: BackOrder

Repair

What is repair?

$900.00

Usually ships in 3-5 business days

New Surplus

What is new surplus?

$924.00

20 in stock

Remanufactured

What is remanufactured?

$556.00

59 in stock
Additional 2 ready to ship within 2-3 days

Part Number

IC670MDL233REP

Manufactured

By GE-Emerson

Product Specs

Features

120VAC rated voltage
0 to 132VAC (47 to 63Hz) input voltage range
13mA (typical) user input current per point @ rated voltage
Indicators:
- 1 LED per point shows individual point status
- PWR LED indicates backplane power is present
Isolation: user input to logic, user input to frame ground
- 250VAC continuous, 1500VAC for 1min
- 300VAC continuous point to point
40mA max. current drawn from BIU power supply
10K typical (reactive) input impedance
Voltage:
- ON state: 70 to 120VAC
- OFF state: 0 to 20VAC
Current:
- ON state: 5 to 15mA
- OFF state: 0 to 2.5mA
Response time:
- ON: 10ms typical, 20ms max.
- OFF: 20ms typical, 40ms max.

The Remanufactured GE-Emerson IC670MDL233 Field Control Discrete Input Module receives power from the bus interface unit (BIU) for its own operation. An external 120VAC supply is needed to power the input devices. Module inputs respond to voltage levels from 0 to 132VAC.

Individual LEDs, visible through the transparent portion of the module top, indicate the on/off status of each input. The PWR LED is on when backplane power is present.

Intelligent processing for the module is performed by the BIU or elsewhere in the system. This includes configuring features such as input defaults and fault reporting. The module has 8 bits (one byte) of discrete input data. A BIU is required to provide this input data to the host and/or local processor.
