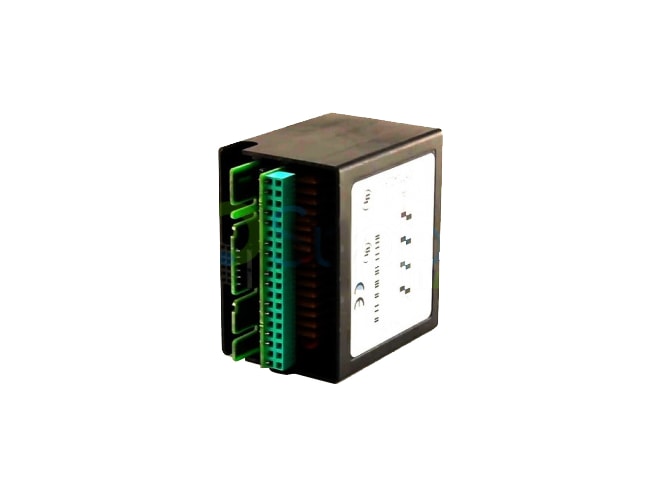

Remanufactured GE-Emerson IC670MDL240 Field Control Discrete Input Module

Provides a single group of 16 discrete inputs.

Remanufactured

$900.00
Availability
  • 5 in stock
  • Additional 6 ready to ship within 2-3 days

New Surplus

$2,100.00
Availability
  • Out of Stock

Repair

$720.00
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC670MDL240RMN
Manufactured
Product Specs

Features

  • 120VAC rated voltage
  • 0 to 132VAC (47 to 63Hz) input voltage range
  • 15mA user input current per point @ 120VAC
  • Indicators:
    • 1 LED per point shows individual point status
    • PWR LED indicates backplane power is present
  • Isolation (user input to logic, user input to frame ground, group to group):
    • 250 VAC continuous, 1500VAC for 1min
    • No isolation between individual points in a group
  • 77mA max. current drawn from BIU power supply
  • 8.6K typical (reactive) input impedance
  • Voltage:
    • ON state: 70 to 120VAC
    • OFF state: 0 to 20VAC
  • Current:
    • ON state: 5 to 15mA
    • OFF state: 0 to 2.5mA
  • Response time:
    • ON: 12ms typical, 20ms max.
    • OFF: 25ms typical, 40ms max.

The GE-Emerson IC670MDL240 Field Control Discrete Input Module receives power from the bus interface unit (BIU) for its own operation. An external 120VAC supply is needed to power the input devices. Module inputs respond to voltage levels from 0 to 132VAC. Individual LEDs, visible through the transparent portion of the module top, indicate the on/off status of each input. The PWR LED is on when backplane power is present.

Intelligent processing for this module is performed by the BIU or elsewhere in the system. This includes configuring features such as input defaults and fault reporting. The module has 16 bits (two bytes) of discrete input data. A BIU is required to provide this input data to the host and/or a local processor.
