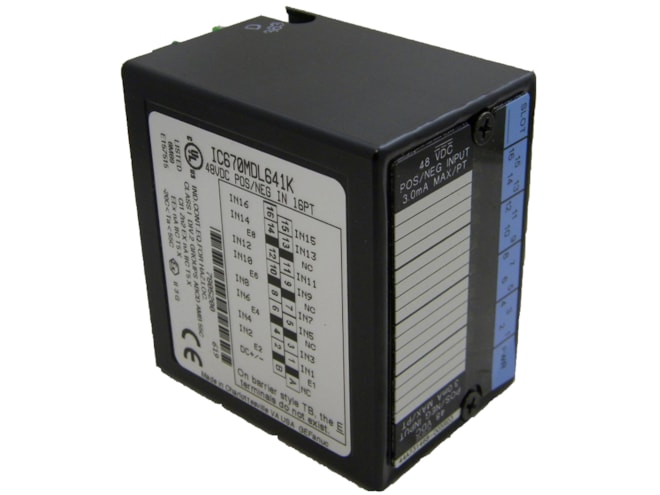

Remanufactured GE-Emerson IC670MDL641 Field Control Discrete Input Module

Provides a single group of 16 discrete inputs, which may be driven by positive or negative logic.

Remanufactured

$1,125.00
Availability
  • 6 in stock

New Surplus

$1,100.00
Availability
  • 24 in stock
Part Number
  • IC670MDL641RMN
Manufactured
Product Specs

Features

  • 48VDC rated voltage
  • 0 to 60VDC input voltage range
  • 2.5mA user input current per point @ 48VDC
  • Isolation (user input to logic, user input to frame ground, group to group):
    • 250VAC continuous, 1500VAC for 1min
    • No isolation between individual points in a group
  • Indicators:
    • 1 LED per point shows individual point status
    • PWR LED indicates field and backplane power are present
  • 83mA max. current drawn from BIU power supply
  • 10K min. input impedance
  • Voltage:
    • ON state:
      • Positive logic: +34 to +60V
      • Negative logic: -34 to -60V
    • OFF state:
      • Positive logic: 0 to +10V
      • Negative logic: 0 to -10V
  • Current:
    • ON state: 0.3 to 3.0mA
    • OFF state: 0 to 0.5mA
  • Response time:
    • ON: 6ms typical, 10ms max.
    • OFF: 13ms typical, 20ms max.

The GE-Emerson IC670MDL641 Field Control Discrete Input Module receives power from the BIU for its own operation. An external 48VDC supply is needed to power the input devices. Individual LEDs (logic side), visible through the transparent portion of the module top, indicate the on/off status of each input. The PWR LED is On when field and backplane power are present.

Intelligent processing for this module is performed by the BIU or elsewhere in the system. This includes configuring features such as input defaults and fault reporting. The module has 16 bits (two bytes) of discrete input data. A BIU is required to provide this input data to the host and/or local processor.
