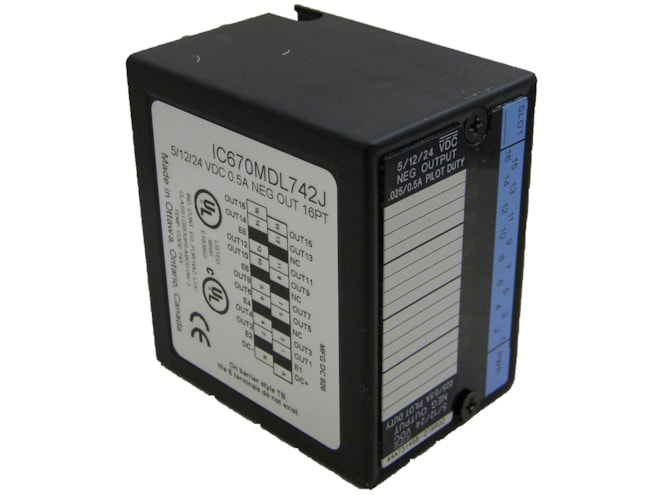

Remanufactured GE-Emerson IC670MDL742 Field Control Discrete Output Module

Provides a single group of 16 discrete negative logic or current-sinking outputs.

Remanufactured

$1,125.00
Availability
  • 3 in stock
  • Additional 6 ready to ship within 2-3 days

New Surplus

$1,450.00
Availability
  • Out of Stock
Part Number
  • IC670MDL742RMN
Manufactured
Product Specs

Features

  • 4.75 to 5.25VDC / 10.5 to 28.5VDC user input voltage, 8A max.
  • 4.5 to 28.25VDC output voltage range
  • Output current:
    • 25mA max. for 5V operation
    • 0.5 Amp max. for 10.5 to 28.5V operation
    • 8 Amps max. per module
    • 0.025A pilot duty at 4.75 to 5.25VDC
    • 0.5A pilot duty at 10.5 to 28.5VDC
  • Isolation (user input to logic, user input to frame ground, group to group):
    • 250VAC continuous, 1500VAC for 1min
    • No isolation between individual points in a group
  • 111mA max. current drawn from BIU power supply
  • 2A max. inrush current for 100mS
  • ON stat voltage:
    • 5V: 0.25V max. at 25mA max.
    • 10.5 to 28.5V: 0.25V max. at 0.5 Amp max.
  • 1mA min. load current per point
  • 0.25V max. output voltage drop at rated currents
  • 250μA output leakage current at 28.5VDC
  • 200μs max. on/off response time with 0.5A resistive load

The GE-Emerson IC670MDL742 Field Control Discrete Output Module includes outputs that switch the loads to the negative side of the DC supply, thus sinking current through the load. The power for the module itself comes from the power supply in the BIU. An external source of DC power must be provided for the switches that power the loads. Within the module, the external power supply is connected to a 10 Amp fuse. During operation, the module monitors this power to be sure it is above 4.2VDC. If not, it is interpreted as a fault by the BIU.

Individual LEDs (logic side), visible through the transparent portion of the module top, indicate the on/off status of each output. The PWR LED is on when field and backplane power are present and the module fuse is not blown.

Intelligent processing for the module is performed by the BIU or elsewhere in the system. This includes configuring features such as output default and fault reporting. The module has 8 bits (one byte) of discrete output data. A BIU is required to obtain this output data from the host and/or local processor.
