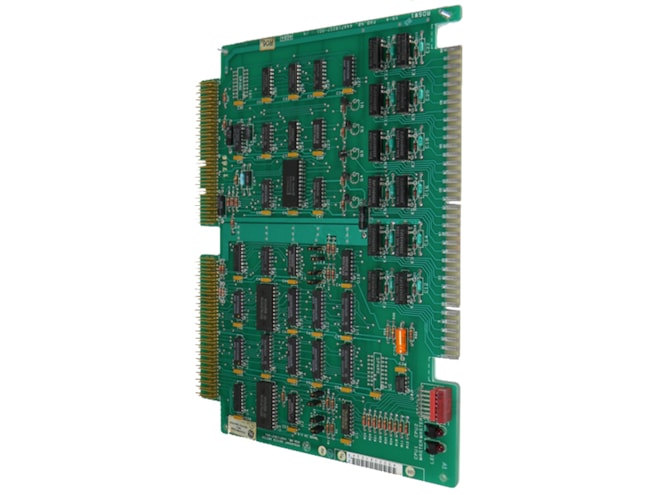

Remanufactured GE-Emerson IC600RB752 Series Six Device Switch Module

Seven segment display indicates system configuration and error status.

Remanufactured

Call for pricing
Availability
  • 6 in stock
  • Additional 2 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC600RB752RMN
Manufactured
Product Specs

Features

  • 5VDC, 1.5 Amps power requirement (supplied by RPU power supply)
  • Relay contact ratings:
    • Max. current 250mA
    • Max. voltage 25VDC or AC
    • Max. 5 millisecond switch bounce
    • Resistive loads only
  • Jumpers facilitate selection of data transfer options
  • Includes circuit board and faceplate

The GE-Emerson IC600RB752 Series Six Device Switch Module includes 12 Form C reed relays to allow external peripherals such as CRTs, printers, etc to be shared between CPUs connected to the RPU. A 36-point connector at the front of the module provides access to these relays.

This module isolates the CPU and I/O Switch modules from and interfaces them to the Data Control Module and its memory in the RPU. A watchdog timer function and various status displays are also provided for external error indication. On-board jumpers allow the selection of various options, including data transfer requirements.
