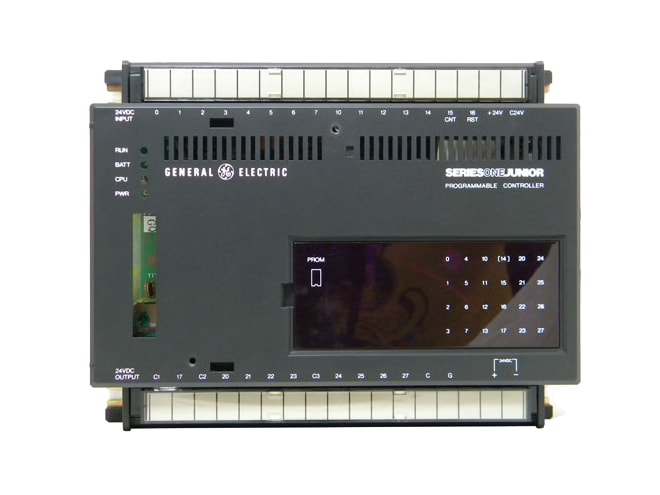

Remanufactured GE-Emerson IC609SJR114 Series One Junior Controller Processor

Name: Remanufactured GE-Emerson IC609SJR114 Series One Junior Controller Processor
Price: 624.0 USD
Availability: InStock

Provides 15 DC sink input circuits and 9 DC sink output circuits.

Remanufactured

What is remanufactured?

$624.00

4 in stock

Repair

What is repair?

Usually ships in 3-5 business days

Part Number

IC609SJR114RMN

Manufactured

By GE-Emerson

Product Manual

Features

24VDC operating power source required
DC input circuits (0 to 14):
- 26VDC max. voltage on input terminal (no load)
- 24VDC open circuit voltage of input (nominal)
- 12mA input current
- 1.8Kohms input impedance
- ON level: 0 to 7VDC
- OFF level: 18 to 26VDC
DC high speed counter input circuits (15, 16)
- Input 15 must use an open collector device
- 26VDC max. voltage on input terminal (no load)
- 24VDC open circuit voltage of input (nominal)
- 12mA input current
- 1.8Kohms input impedance
- ON level: 0 to 7VDC
- OFF level: 18 to 26VDC
DC sink output circuits:
- 5 to 24VDC operating voltage
- 45VDC peak voltage
- Max. current:
  - 1.0 Amps, outputs 17 to 23
  - 0.5 Amps, outputs 24 to 27
- 0.1mA max. leakage current
- Max. On Voltage Drop:
  - 0.9VDC @ 1.0 Amps
  - 1.5VDC @ 0.5 Amps
- Max. inrush:
  - 4 Amps for 10ms, outputs 17 to 23
  - 1 Amps for 100ms, outputs 24 to 27

The GE-Emerson IC609SJR114 Series One Junior Controller Processor includes input circuits each designed to receive a single discrete (ON/OFF) signal from user supplied devices such as limit switches, pushbuttons, selector switches, and relay contacts. Circuits 15 and 16 can be used for high speed count input and reset or used as normal DC sink input points.

The 9 DC sink output circuits are each capable of controlling user supplied discrete (ON/OFF) loads. Typical loads include relay coils, motor starters, solenoid valves, and indicator lights. The ON/OFF state of each input and output circuit is indicated by an LED.
