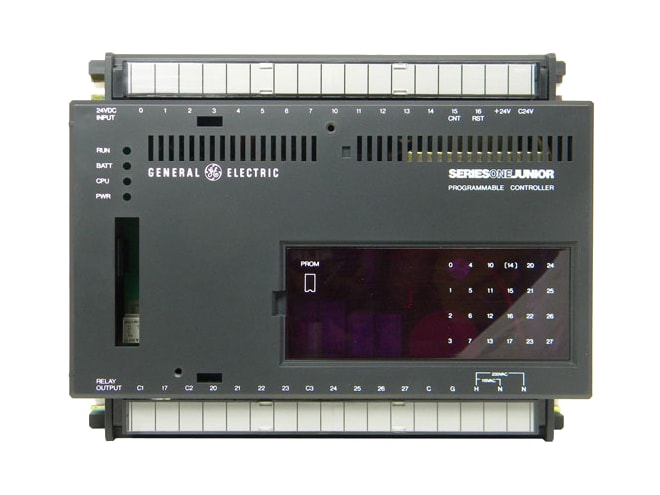

Remanufactured GE-Emerson IC609SJR120 Series One Junior Controller Processor

Provides 15 DC sink input circuits and 9 relay output circuits.

Remanufactured

Call for pricing
Availability
  • Out of Stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC609SJR120RMN
Manufactured
Product Manual

Features

  • Requires 115/230VAC operating voltage power source
  • DC input circuits (0 to 14):
    • 26VDC max. voltage on input terminal (no load)
    • 24VDC open circuit voltage of input (nominal)
    • 12mA input current
    • 1.8Kohms input impedance
    • ON level: 0 to 7 VDC
    • OFF level: 18 to 26VDC
  • DC high speed counter input circuits (15, 16):
    • Input 15 must use an open collector device
    • 26VDC max. voltage on input terminal (no load)
    • 24VDC open circuit voltage of input (nominal)
    • 12mA input current
    • 1.8Kohms input impedance
    • ON level: 0 to 7VDC
    • OFF level: 18 to 26VDC
  • Relay output circuits:
    • 5 to 265VAC/DC operating voltage
    • 47 to 63Hz AC frequency
    • 2 Amps max. current
    • 1mA max. leakage current
    • 1mA @ 5V smallest recommended load

The GE-Emerson IC609SJR120 Series One Junior Controller Processor includes input circuits each designed to receive a single discrete (ON/OFF) signal from user supplied devices such as limit switches, pushbuttons, selector switches, and relay contacts. Circuits 15 and 16 can be used for high speed count input and reset or used as normal DC sink input points.

The relay output circuits are each capable of controlling user supplied discrete (ON/OFF) loads. Typical loads include relay coils, motor starters, solenoid valves, and indicator lights. Since the relay output circuits were not designed for a specific voltage such as 24VDC or 115VAC, they can be used for a wide variety of loads and signal types. The ON/OFF state of each input and output circuit is indicated by an LED.
