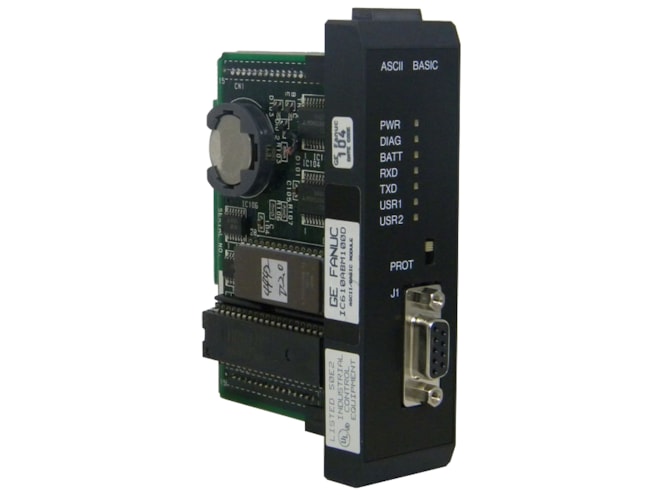

Repair GE-Emerson IC610ABM100 Series One ASCII/BASIC Module
Applies Intel MCS BASIC 52 language with additional commands by GE.
Overview
Features
- Max. 300mA power requirement (supplied by the 9VDC output of the Series One power supply)
- 11.0592Mhz clock rate
- 56K RAM, battery backed memory
- Lithium battery, replaceable
- Meets agency standards for:
- Radio Frequency Interference: FCC Class A, part 15, subpart J
- Shock:
- Mil-std 810C method 514.2, rank F
- JIS.C 0912 10 G
- Vibration:
- Mil-std 810C method 514.2
- JIS.C 0912 10 G
- Noise Immunity:
- NEMA ICS3-304
- RFI - 150, 450Mhz
- Impulse 1000V, 1μs pulses
- Communications through a built-in RS-232 Serial Port (RTS included)
- 300 to 19,200 baud, selectable through programming
- LEDs controlled by CPU with additional LEDs controlled by user's BASIC program
Description
The GE-Emerson IC610ABM100 Series One ASCII/BASIC Module is a compact module requiring only a single slot in a Series One or Series One Plus PLC rack. The ASCII/BASIC module can be used in either a Series One or Series One Plus PLC control system. However, the expanded instruction set (data operations), which is a standard feature of the Series One Plus PLC, allows more efficient use of all of the features of the module.
The module, under control of the resident BASIC programming language and with appropriate ladder logic, can exchange information with the PLC. This information can be the status of any Input or Output point or internal reference, which can be transferred to the ASCII/BASIC Module from the Series One or Series One Plus PLC. Additionally, the contents of a register can be transferred to the Series One Plus PLC from the ASCII/BASIC Module. With appropriate programming, the ASCII/BASIC Module can instruct the Series One PLC to read or change the status of any output point or any register.
