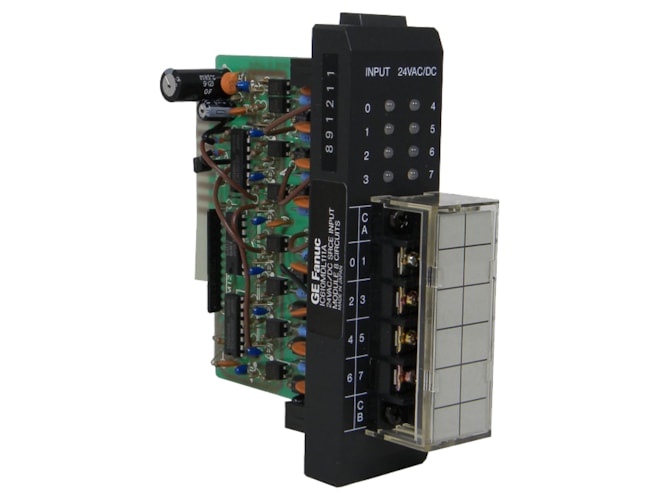

Remanufactured GE-Emerson IC610MDL111 Series One Source Input Module

8 input circuits.

Remanufactured

Call for pricing
Availability
  • 5 in stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC610MDL111RMN
Manufactured
Product Specs

Features

  • AC inputs:
    • 20 to 28VAC input voltage, 50 to 60Hz
    • 19mA max. input current
    • 13mA typical input current
    • 20 to 28VAC ON level
    • 0 to 6VAC OFF level
    • 5 to 50ms OFF to ON response
    • 5 to 60ms ON to OFF response
    • Field side circuit indicator
  • DC Inputs:
    • 20 to 28VDC (source) input voltage
    • 19mA max. input current
    • 13mA typical input current
    • 20 to 28VDC ON level
    • 0 to 6VDC OFF level
    • 6 to 30ms OFF to ON response
    • 5 to 60ms ON to OFF response
    • Field side circuit indicator
    • 9VDC, 10mA internal power consumption (supplied by rack power supply)
    • 1 unit of load @ 9VDC

The GE-Emerson IC610MDL111 Series One Source Input Module provides input circuits each designed to receive a single discrete (ON/OFF) signal from user supplied devices. Typical input devices include pushbuttons, limit switches, selector switches, and relay contacts. These input circuits can interface to either 24VAC signals or 24VDC source-type signals, thereby allowing the module to interface to input devices that provide their own voltage.
