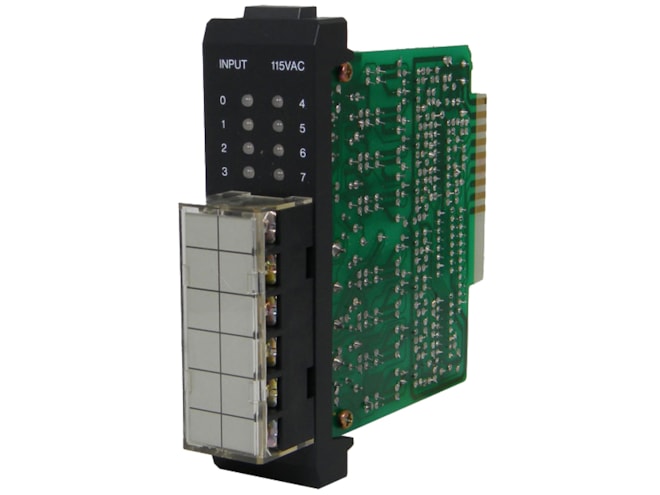

Repair GE-Emerson IC610MDL125 Series One Input Module

8 input points.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 1 in stock
Part Number
  • IC610MDL125REP
Manufactured
Product Specs

Features

  • 97 to 132VAC operating voltage
  • 47 to 63Hz AC frequency
  • Input current:
    • 15mA @ 60Hz
    • 11.5mA @ 50Hz
  • 9.5K ohms input impedance
  • ON level: above 80VAC
  • OFF level: below 20VAC
  • 10 to 30ms OFF to ON response
  • 10 to 60ms ON to OFF response
  • Field side circuit indicator
  • 10mA internal power consumption @ 9VDC
  • 1 unit of load @ 9VDC

The GE-Emerson IC610MDL125 Series One Input Module provides circuits each designed to receive a single discrete (ON/OFF) signal from user supplied devices. Typical input devices include limit switches, pushbuttons, selector switches, and relay contacts. The 8 circuits are divided into two groups of 4 circuits each. Each group can be supplied from a separate power source. Power to operate the field devices must also be supplied by the user.
