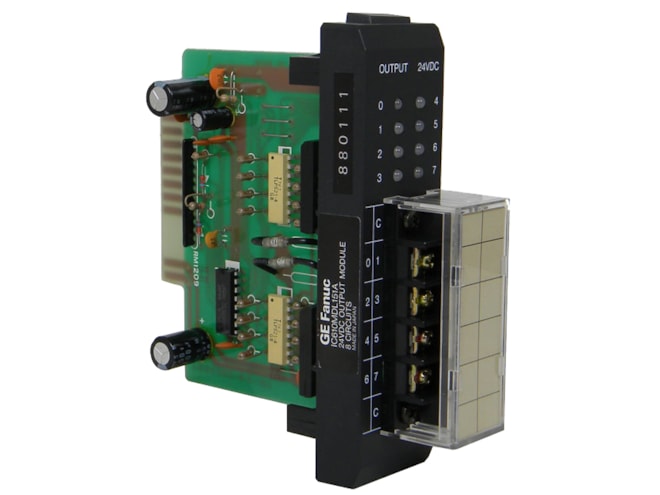

Repair GE-Emerson IC610MDL151 Series One Sink Output Module

8 output points.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 2 in stock
Part Number
  • IC610MDL151REP
Manufactured
Product Specs

Features

  • 5 to 24VDC operating voltage
  • 45VDC peak voltage
  • 0.5 Amps max. current
  • 0.1mA max. leakage current @ 40VDC
  • ON voltage drop:
    • 0.8V @ 0.5 Amps
    • 0.65V @ 0.1 Amps
  • 1mA smallest recommended load
  • Max. inrush:
    • 3 Amps for 20ms
    • 1 Amps for 100ms
  • 100msec OFF to ON and ON to OFF response
  • Logic side circuit indicator
  • Two 3-Amp internal fuses, one on each group of 4
  • Internal power consumption:
    • 20mA @ 9VDC
    • 3mA for each ON circuit @ 24VDC
  • Units of load:
    • 2 units @ 9VDC
    • 3 units @ 24VDC

The GE-Emerson IC610MDL151 Series One Sink Output Module provides circuits each capable of controlling user supplied discrete (ON/OFF) loads. Typical loads include relay coils, motor starters, solenoid valves, and indicator lights. The 8 circuits are provided referenced to a single DC power source, that must be supplied by the user. Since current flows from the load into the field terminal for each circuit when the output is energized, these circuits are referred to as sink DC outputs.
