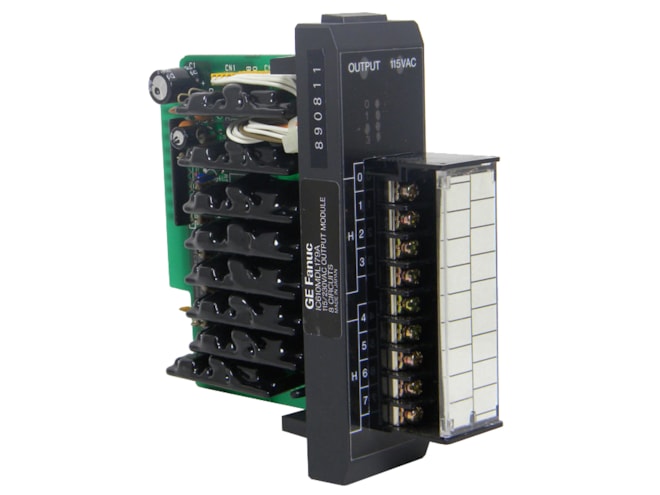

Remanufactured GE-Emerson IC610MDL179 Series One Output Module

8 output points; with removable terminal board.

Remanufactured

Call for pricing
Availability
  • 6 in stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC610MDL179RMN
Manufactured
Product Specs

Features

  • 80 to 264VAC operating voltage
  • 47 to 63Hz AC frequency
  • 1 Amp max. current
  • Max. leakage current: 1.2mA @ 230V, 60Hz
  • 1.5V ON voltage drop @ 1 Amp
  • 25mA smallest recommended load
  • 10 Amps for 17ms max. inrush
  • 1ms OFF to ON response
  • 9ms ON to OFF response
  • Logic side circuit indicator
  • (2) 5 Amp internal, soldered fuses (one on each group of 4)
  • 12mA internal power consumption for each ON circuit @ 9VDC
  • 16 units of load @ 9VDC

The GE-Emerson IC610MDL179 Series One Output Module provides 8 circuits each capable of controlling user supplied discrete (ON/OFF) loads. Typical loads include relay coils, motor starters (up to No. 3), solenoid valves and indicator lights. The 8 circuits are divided into 2 groups of 4 circuits each. Each group can be supplied from a separate power source. Power to operate the field devices must also be supplied by the user.
