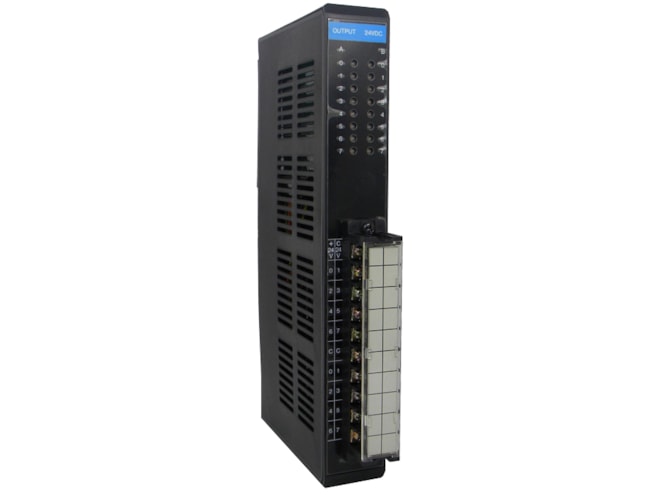

Repair GE-Emerson IC630MDL352 Series Three Output Module

16 output points with LED indicators.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 5 in stock
Part Number
  • IC630MDL352REP
Manufactured
Product Specs

Features

  • User power supply:
    • Voltage: 24VDC, +/-10%
    • Ripple: <3% rms
    • Current:
      • 100mA max. (8 outputs ON)
      • 50mA typ. (4 outputs ON)
  • 5 Amp fuse rating (for each 4 circuits)
  • <100µA leakage current
  • 0.3V max. ON state voltage drop
  • 100µs ON and OFF delay
  • 24VDC, 1 Amp max. switching capacity
  • Internal power consumption:
    • 5VDC, 35mA
    • 12VDC, 11mA/point

The GE-Emerson IC630MDL352 Series Three Output Module provides circuits each capable of controlling user supplied discrete (ON/OFF) loads. Typical loads include motor starters, relay coils, and indicators. A 24VDC power supply must be provided by the user. This supply provides power for the loads and also provides the DC power source for the output circuits on the module. The output switching circuitry on the module is arranged in 4 groups with 4 circuits in each group. Each group is protected by a 5 Amp fuse.
