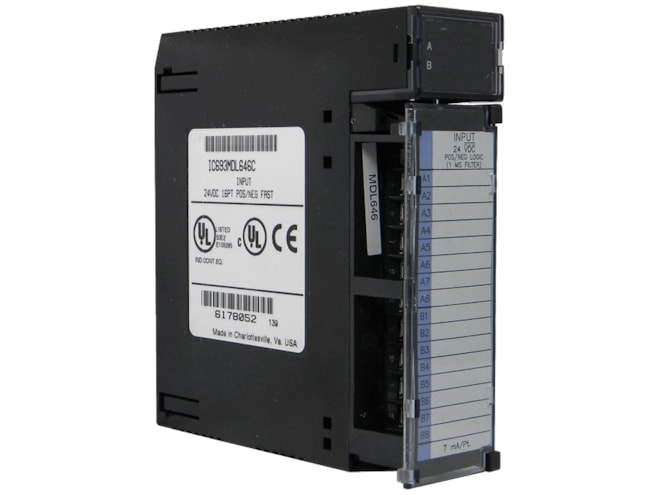

Remanufactured GE-Emerson IC693MDL646 24VDC Positive/Negative Logic FAST Input Module

The GE-Emerson IC693MDL646 24VDC Positive/Negative Logic FAST Input Module includes a typical On and Off response time of 1ms. Input characteristics are compatible with a wide range of user-supplied input devices, such as pushbuttons, limit switches, and electronic proximity switches.  Current into an input point results in a logic 1 in the input status table (%I).  Power to operate the field devices can be supplied by the user, or an Isolated +24 VDC supply on the power supply (+24V OUT and 0V OUT terminals) can power a limited number of inputs.

LED indicators that provide the ON/OFF status of each point are located at the top of the module.  This LED block has two horizontal rows with eight green LEDs in each row; the top row labeled A1 through 8 (points 1 through 8)  and the bottom row labeled B1 through 8 (points 9 through 16).   An insert goes between the inside and outside surfaces of the hinged door.  The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface.  The outside left edge of the insert is color-coded blue to indicate a low-voltage module.  This module can be installed in any I/O slot in a Series 90-30 PLC system.
