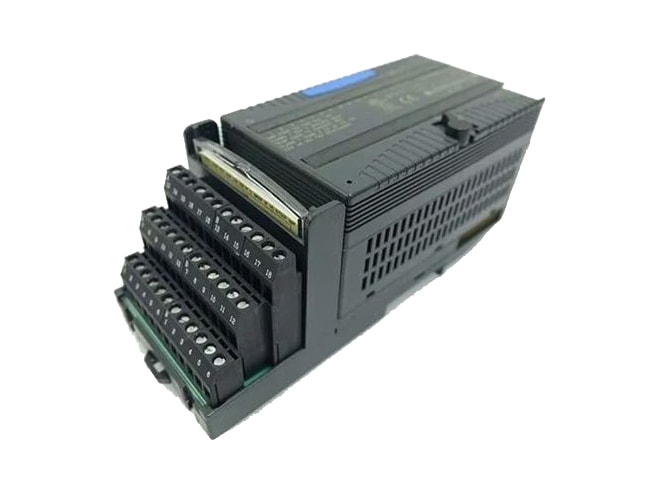

Remanufactured GE-Emerson IC200MDL741 Positive Logic Discrete ESCP Output Module

Provides one group of 16 outputs.

Remanufactured

Call for pricing
Availability
  • Out of Stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200MDL741RMN
Manufactured
Product Specs

Features

  • 250VAC continuous; 1,500VAC for 1min isolation user input to logic (optical) and frame to ground
  • One green LED per point shows individual point on/off state
  • One amber LED per point shows individual point overloads
  • FLD PWR LED indicates field power is present
  • OK LED indicates backplane power is present
  • 5V output: 75mA max. backplane power consumption
  • 18 to 30VDC, 24VDC nominal external power supply

The GE-Emerson IC200MDL741 Positive Logic Discrete ESCP Output Module includes electronic overcurrent protection and short circuit protection for each point and generates a fault if either condition exists. The outputs are positive or sourcing type outputs. They switch the loads to the positive side of the DC supply and thus supply current to the loads.

An external DC power supply must be provided to switch power to the loads. Intelligent processing for this module is performed by the CPU or NIU.
