Repair Allen-Bradley 1769-OB32 CompactLogix Discrete Output Module

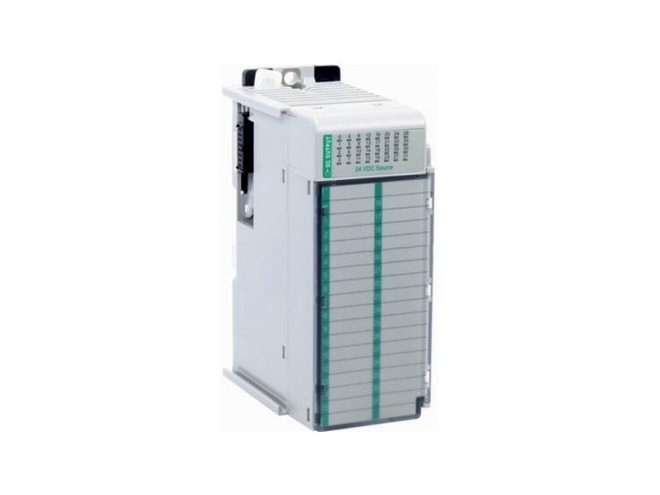

Name: Repair Allen-Bradley 1769-OB32 CompactLogix Discrete Output Module
Availability: BackOrder

32 outputs (16 points/group).

Repair

What is repair?

Usually ships in 2-3 weeks

Remanufactured

What is remanufactured?

$906.08

1 in stock

Part Number

1769-OB32REP

Manufactured

By Allen-Bradley

Features

24VDC source voltage category
20.4 to 26.5VDC operating voltage range
Output delay:
- ON: 0.1ms
- OFF: 1.0ms
300mA @ 5.1V current draw
4.5W max. heat dissipation
1.0mA @ 26.4VDC max. off-state leakage current
1.0mA min. on-state current
1.0VDC @ 1A max. on-state voltage drop
Max. current per point:
- 0.5A @ 140°F
- 1.0A @ 86°F
Max. current per module:
- 4.0A @ 140°F
- 8.0A @ 86°F
2.0A for 10ms surge current, repeatable every 2sec
Isolation voltage, verified by one of the following dielectric tests:
- 1,200VAC for 1s or 1,697VDC for 1s, output point to bus
- 75VDC working voltage (IEC Class II reinforced insulation)
1.5 slot width, DIN rail or panel mount
Open-style enclosure

The Allen-Bradley 1769-OB32 CompactLogix Discrete Output Module is designed for use with CompactLogix controllers and MicroLogix 1500 controllers. It is a high-density module, and its output channel operates at a sourcing input configuration. It occupies a 32-bit register, which can be accessed to enable monitoring or I/O forcing to support commissioning of the component. The module may be placed beside any adjacent Compact I/O module, as long as the mounting tabs are properly aligned to the backplane.
